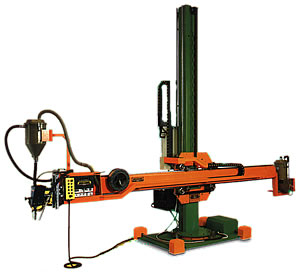

This welding machine can work with roller turner or positionor,apply widely to the round or vertical bead of the boiler,pressure container, in Petrochemical ,chemical,power,machinary industry.

This welding machine is a advanced structure,multi-functional,easy to operate,guarantee the welding quality.

Specification of the operation frame:

model	ARC-HJ-1	ARC-HJ-2	ARC-HJ-3	ARC-HJ-4	ARC-HJ-5	ARC-HJ-6
Barrel diameter mm	1000～4500	1000～3500	600～3500	600～3000	600～3000	600～1200
Horizontal moving distance mm	8000 (two section）	7000 （two section）	7000 （two section）	6000 （two section）	4000	3000
Vertical moving distance mm	4500	3500	3500	3000	3000	1400
Turning angle of the base frame	±180°	±180°	±180°	±180°	fixed	Hand adjust ±360°
Speed of the cross beam/min	0.12～1.2	0.12～1.2	0.12～1.2	0.12～1.2	0.12～1.2	0.12～1.2
Speed of carriage  m/min	3	3	3	3	3	hand adjust
Carriage path distance	2000	2000	1700	1600	1500	1200
